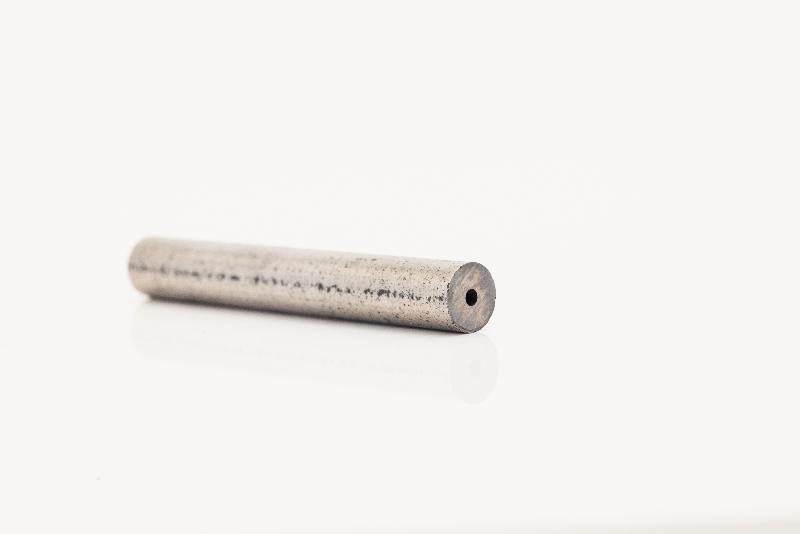

Прутки с центральным отверстием для СОЖ
|
Тип |
Диаметр |
Длина Доп. /0,+5) |
rt ?L Ж |
Отклонение отверстия a |
|||
|
ØD
|
Доп. нешлиф. |
Доп.шлиф. |
Ød
|
Доп. |
|||
|
GA1030330050 |
3 |
+0.30,+0.50 |
h5/h6 |
330 |
0.50 |
±0.10 |
0.10 |
|
GA1040330080 |
4 |
+0.30,+0.50 |
h5/h6 |
330 |
0.80 |
±0.10 |
0.10 |
|
GA1050330080 |
5 |
+0.30,+0.50 |
h5/h6 |
330 |
0.80 |
±0.10 |
0.13 |
|
GA1060330100 |
6 |
+0.30,+0.50 |
h5/h6 |
330 |
1.00 |
±0.15 |
0.15 |
|
GA1070330100 |
7 |
+0.30,+0.60 |
h5/h6 |
330 |
1.00 |
±0.15 |
0.15 |
|
GA1080330100 |
8 |
+0.30,+0.60 |
h5/h6 |
330 |
1.00 |
±0.15 |
0.15 |
|
GA1090330140 |
9 |
+0.30,+0.60 |
h5/h6 |
330 |
1.40 |
±0.15 |
0.20 |
|
GA1100330140 |
10 |
+0.30,+0.60 |
h5/h6 |
330 |
1.40 |
±0.15 |
0.20 |
|
GA1110330140 |
11 |
+0.30,+0.60 |
h5/h6 |
330 |
1.40 |
±0.15 |
0.28 |
|
GA1120330175 |
12 |
+0.30,+0.60 |
h5/h6 |
330 |
1.75 |
±0.15 |
0.30 |
|
GA1130330175 |
13 |
+0.30,+0.70 |
h5/h6 |
330 |
1.75 |
±0.15 |
0.34 |
|
GA1140330175 |
14 |
+0.30,+0.70 |
h5/h6 |
330 |
1.75 |
±0.15 |
0.37 |
|
GA1150330200 |
15 |
+0.30,+0.70 |
h5/h6 |
330 |
2.00 |
±0.20 |
0.40 |
|
GA1160330200 |
16 |
+0.30,+0.70 |
h5/h6 |
330 |
2.00 |
±0.20 |
0.40 |
|
GA1170330200 |
17 |
+0.30,+0.80 |
h5/h6 |
330 |
2.00 |
±0.20 |
0.47 |
|
GA1180330200 |
18 |
+0.30,+0.80 |
h5/h6 |
330 |
2.00 |
±0.20 |
0.50 |
|
GA1190330200 |
19 |
+0.30,+0.80 |
h5/h6 |
330 |
2.00 |
±0.20 |
0.50 |
|
GA1200330250 |
20 |
+0.30,+0.80 |
h5/h6 |
330 |
2.50 |
±0.25 |
0.50 |
|
GA1210330250 |
21 |
+0.30,+0.80 |
h5/h6 |
330 |
2.50 |
±0.25 |
0.50 |
|
GA1220330250 |
22 |
+0.30,+0.80 |
h5/h6 |
330 |
2.50 |
±0.25 |
0.50 |
|
GA1230330250 |
23 |
+0.30,+0.80 |
h5/h6 |
330 |
2.50 |
±0.25 |
0.50 |
|
GA1240330300 |
24 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
0.50 |
|
GA1250330300 |
25 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
0.50 |
|
GA1260330300 |
26 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
0.50 |
|
GA1270330300 |
27 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
0.50 |
|
GA1280330300 |
28 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
0.50 |
|
GA1290330300 |
29 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
0.50 |
|
GA1300330300 |
30 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
0.50 |
