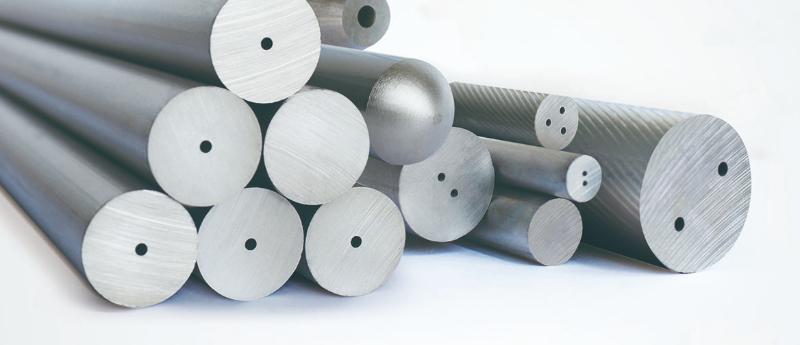

Прутки с 2 цилиндрическими отверстиями для СОЖ
|
ш Тип |
Диаметр |
Длина |
Диаметр |
О к р ужность центров отверстий под болты |
Отклонение |
||||
|
ØD |
Доп. нешлиф. |
Доп.шлиф. |
Ød |
Доп. |
TKØ |
Доп. |
|||
|
GB1040330080018 |
4 |
+0.30,+0.50 |
h5/h6 |
330 |
0.80 |
±0.10 |
1.80 |
+0,-0.15 |
0.10 |
|
GB1050330080020 |
5 |
+0.30,+0.50 |
h5/h6 |
330 |
0.80 |
±0.10 |
2.00 |
+0,-0.15 |
0.13 |
|
GB1060330100030 |
6 |
+0.30,+0.50 |
h5/h6 |
330 |
1.00 |
±0.15 |
3.00 |
+0,-0.20 |
0.15 |
|
GB1070330100035 |
7 |
+0.30,+0.60 |
h5/h6 |
330 |
1.00 |
±0.15 |
3.50 |
+0,-0.20 |
0.15 |
|
GB1080330100040 |
8 |
+0.30,+0.60 |
h5/h6 |
330 |
1.00 |
±0.15 |
4.00 |
+0,-0.30 |
0.15 |
|
GB1090330140040 |
9 |
+0.30,+0.60 |
h5/h6 |
330 |
1.40 |
±0.15 |
4.00 |
+0,-0.30 |
0.20 |
|
GB1100330140050 |
10 |
+0.30,+0.60 |
h5/h6 |
330 |
1.40 |
±0.15 |
5.00 |
+0,-0.30 |
0.20 |
|
GB1110330140050 |
11 |
+0.30,+0.60 |
h5/h6 |
330 |
1.40 |
±0.15 |
5.00 |
+0,-0.30 |
0.28 |
|
GB1120330175060 |
12 |
+0.30,+0.60 |
h5/h6 |
330 |
1.75 |
±0.15 |
6.00 |
+0,-0.30 |
0.30 |
|
GB1130330175060 |
13 |
+0.30,+0.70 |
h5/h6 |
330 |
1.75 |
±0.15 |
6.00 |
+0,-0.30 |
0.34 |
|
GB1140330175070 |
14 |
+0.30,+0.70 |
h5/h6 |
330 |
1.75 |
±0.15 |
7.00 |
+0,-0.30 |
0.37 |
|
GB1150330200070 |
15 |
+0.30,+0.70 |
h5/h6 |
330 |
2.00 |
±0.20 |
7.00 |
+0,-0.30 |
0.40 |
|
GB1160330200080 |
16 |
+0.30,+0.70 |
h5/h6 |
330 |
2.00 |
±0.20 |
8.00 |
+0,-0.30 |
0.40 |
|
GB1170330200080 |
17 |
+0.30,+0.80 |
h5/h6 |
330 |
2.00 |
±0.20 |
8.00 |
+0,-0.30 |
0.47 |
|
GB1180330200090 |
18 |
+0.30,+0.80 |
h5/h6 |
330 |
2.00 |
±0.20 |
9.00 |
+0,-0.30 |
0.50 |
|
GB1190330200090 |
19 |
+0.30,+0.80 |
h5/h6 |
330 |
2.00 |
±0.20 |
9.00 |
+0,-0.30 |
0.50 |
|
GB1200330250100 |
20 |
+0.30,+0.80 |
h5/h6 |
330 |
2.50 |
±0.25 |
10.00 |
+0,-0.40 |
0.50 |
|
GB1210330250100 |
21 |
+0.30,+0.80 |
h5/h6 |
330 |
2.50 |
±0.25 |
10.00 |
+0,-0.40 |
0.50 |
|
GB1220330250110 |
22 |
+0.30,+0.80 |
h5/h6 |
330 |
2.50 |
±0.25 |
11.00 |
+0,-0.40 |
0.50 |
|
GB1230330250110 |
23 |
+0.30,+0.80 |
h5/h6 |
330 |
2.50 |
±0.25 |
11.00 |
+0,-0.40 |
0.50 |
|
GB1240330300120 |
24 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
12.00 |
+0,-0.50 |
0.50 |
|
GB1250330300120 |
25 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
12.00 |
+0,-0.50 |
0.50 |
|
GB1260330300130 |
26 |
+0.30,+0.80 |
h5/h6 |
330 |
3.00 |
±0.25 |
13.00 |
+0,-0.50 |
0.50 |
