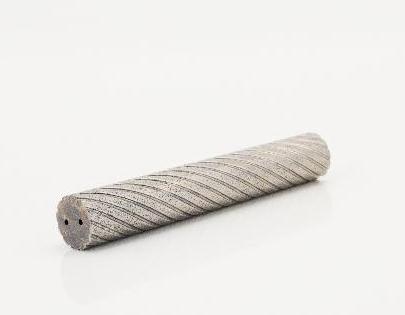

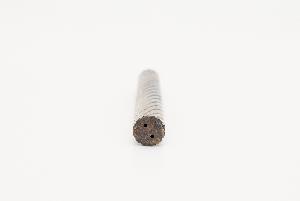

Прутки с 2 спиральными отверстиями для СОЖ (40°)
|
Тип |
Ø D |
Длина Доп. /0,+5) |
Ø d |
Окружность центров |
(±0.5°) Шаг |
Отклонение |
||
|
|
|
|
|
|
Шаг |
Доп. |
||
|
GD401060330050022S |
6 |
330 |
0.50 |
2.20 |
22.46 |
-0.39 |
+0.40 |
0.15 |
|
GD401070330065024S |
7 |
330 |
0.65 |
2.40 |
26.21 |
-0.46 |
+0.47 |
0.15 |
|
GD401080330065027S |
8 |
330 |
0.65 |
2.70 |
29.95 |
-0.53 |
+0.54 |
0.15 |
|
GD401090330075032S |
9 |
330 |
0.75 |
3.20 |
33.70 |
-0.59 |
+0.60 |
0.20 |
|
GD401100330080035S |
10 |
330 |
0.80 |
3.50 |
37.44 |
-0.66 |
+0.67 |
0.20 |
|
GD401110330080037S |
11 |
330 |
0.80 |
3.70 |
41.18 |
-0.72 |
+0.74 |
0.30 |
|
GD401120330090042S |
12 |
330 |
0.90 |
4.20 |
44.93 |
-0.79 |
+0.80 |
0.30 |
|
GD401130330090044S |
13 |
330 |
0.90 |
4.40 |
48.67 |
-0.85 |
+0.87 |
0.37 |
|
GD401140330100047S |
14 |
330 |
1.00 |
4.70 |
52.42 |
-0.92 |
+0.94 |
0.40 |
|
GD401150330110051S |
15 |
330 |
1.10 |
5.10 |
56.16 |
-0.99 |
+1.01 |
0.40 |
|
GD401160330120055S |
16 |
330 |
1.20 |
5.50 |
59.90 |
-1.05 |
+1.07 |
0.40 |
|
GD401170330120059S |
17 |
330 |
1.20 |
5.90 |
63.65 |
-1.12 |
+1.14 |
0.45 |
|
GD401180330140063S |
18 |
330 |
1.40 |
6.30 |
67.39 |
-1.18 |
+1.21 |
0.50 |
|
GD401190330140067S |
19 |
330 |
1.40 |
6.70 |
71.14 |
-1.25 |
+1.27 |
0.50 |
|
GD401200330150071S |
20 |
330 |
1.50 |
7.10 |
74.88 |
-1.31 |
+1.34 |
0.50 |
|
|
Нешлифованный Ø D(mm) |
Шлифованный Ø D(mm) |
||
|
|
Диапазон |
Доп. |
Диапазон |
Доп. |
|
GESAC |
6≤ØD≤20
|
+1. 10, +1. 50 |
6≤ØD≤20
|
h6/h5 |
|
Стандарт |
Ø d (мм) |
ТКØ(мм) |
||
|
GESAC |
Диапазон |
Доп. |
Диапазон |
Доп. |
|
|
0.40≤Ød≤0.60
|
±0. 10 |
TKØ≤2.20
|
+0, -0.40 |
|
|
0.60＜Ød≤0.90
|
±0. 15 |
2.20＜TKØ≤2.70
|
+0, -0.60 |
|
0.90＜Ød≤1.20 |
±0. 20 |
2.70＜TKØ≤6.30 |
+0, -0.80 |
|
|
1.20＜Ød≤1.50 |
±0. 25 |
6.3＜TKØ≤7.1 |
+0, -1.00 |
|
