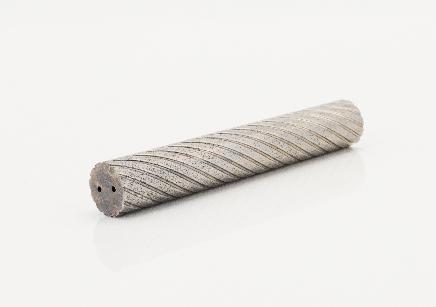

Прутки с 2 спиральными отверстиями для СОЖ (30°)
|
(±0.5°) Шаг |
Отклонение отверстия a |
|||||||
|
Тип |
ØD |
Длина Доп. /0,+5) |
Ød |
Окружность центров отверстий под болты TKØ |
Шаг |
Доп. |
||
|
GD301140330175071S |
14 |
330 |
1.75 |
7.10 |
76.18 |
-1.51 |
+1.56 |
0.40 |
|
GD301140330190067N |
14 |
330 |
1.90 |
6.70 |
76.18 |
-1.51 |
+1.56 |
0.40 |
|
GD301150330175077S |
15 |
330 |
1.75 |
7.70 |
81.62 |
-1.62 |
+1.67 |
0.40 |
|
GD301160330175083S |
16 |
330 |
1.75 |
8.30 |
87.06 |
-1.73 |
+1.78 |
0.40 |
|
GD301160330210080N |
16 |
330 |
2.10 |
8.00 |
87.07 |
-1.73 |
+1.78 |
0.45 |
|
GD301160330250088N |
16 |
330 |
2.50 |
8.80 |
87.06 |
-1.73 |
+1.78 |
0.45 |
|
GD301170330175089S |
17 |
330 |
1.75 |
8.90 |
92.50 |
-1.84 |
+1.89 |
0.45 |
|
GD301180330200095S |
18 |
330 |
2.00 |
9.55 |
97.95 |
-1.94 |
+2.00 |
0.50 |
|
GD301180330280099N |
18 |
330 |
2.80 |
9.90 |
97.95 |
-1.95 |
+2.00 |
0.50 |
|
GD301190330200101S |
19 |
330 |
2.00 |
10.10 |
103.39 |
-2.05 |
+2.12 |
0.50 |
|
GD301200330200104S |
20 |
330 |
2.00 |
10.40 |
108.83 |
-2.16 |
+2.23 |
0.50 |
|
GD301200330250100N |
20 |
330 |
2.50 |
10.00 |
108.83 |
-2.16 |
+2.23 |
0.50 |
|
GD301210330200111S |
21 |
330 |
2.00 |
11.15 |
114.27 |
-2.27 |
+2.34 |
0.50 |
|
GD301220330200116S |
22 |
330 |
2.00 |
11.60 |
119.71 |
-2.38 |
+2.45 |
0.50 |
|
GD301230330200122S |
23 |
330 |
2.00 |
12.20 |
125.15 |
-2.48 |
+2.56 |
0.50 |
|
GD301240330200128S |
24 |
330 |
2.00 |
12.80 |
130.59 |
-2.59 |
+2.67 |
0.50 |
|
GD301250330200133S |
25 |
330 |
2.00 |
13.30 |
136.03 |
-2.70 |
+2.78 |
0.50 |
|
Нешлифованный Ø D (мм) |
Шлифованный ØD (мм) |
|||
|
Диапазон |
Доп. |
Диапазон |
Доп. |
|
|
3≤ØD≤6 |
+0.60, +1.00 |
|||
|
6＜ØD≤24 |
+0. 70, +1. 10 |
3≤ØD≤25 |
h6/h5 |
|
|
GESAC |
ØD=25 |
+0.80, +1.20 |
||
|
Стандарт |
Ø d(мм) |
тк Ø (мм) |
||
|
GESAC |
Диапазон |
Доп. |
Диапазон |
Доп. |
|
0.40≤Ød≤0.90 |
±0. 10 |
TKØ≤4.00 |
+0, -0.40 |
|
|
0.90＜Ød≤1.70 |
±0. 15 |
4.00＜TKØ≤5.00 |
+0, -0.60 |
|
|
Ød=1.75 |
±0. 20 |
5.00＜TKØ≤10.10 |
+0, -0.80 |
|
|
Ød=2.00 |
±0. 25 |
10.10＜TKØ≤13.30 |
+0, -1.00 |
|
